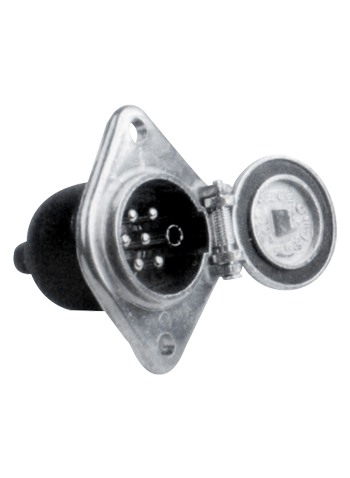

FA2001D
24V 7Pin Metal Socket,S type
Wiring Configuration:
Pin 1 - White Wire (common return)
Pin 2 - Black Wire (reserved for future allocation)
Pin 3 - Yellow Wire (reversing light)
Pin 4 - Red Wire (permanent power supply)
Pin 5 - Green Wire (sensing device with common return)
Pin 6 - Brown Wire (power supply controlled by ignition switch)
Pin 7 - Blue Wire (rear fog light)
